Hydraulic 4-Roll Bending Machine For Wind Tower

Overview of Hydraulic 4-Roll Bending Machine For Wind Tower

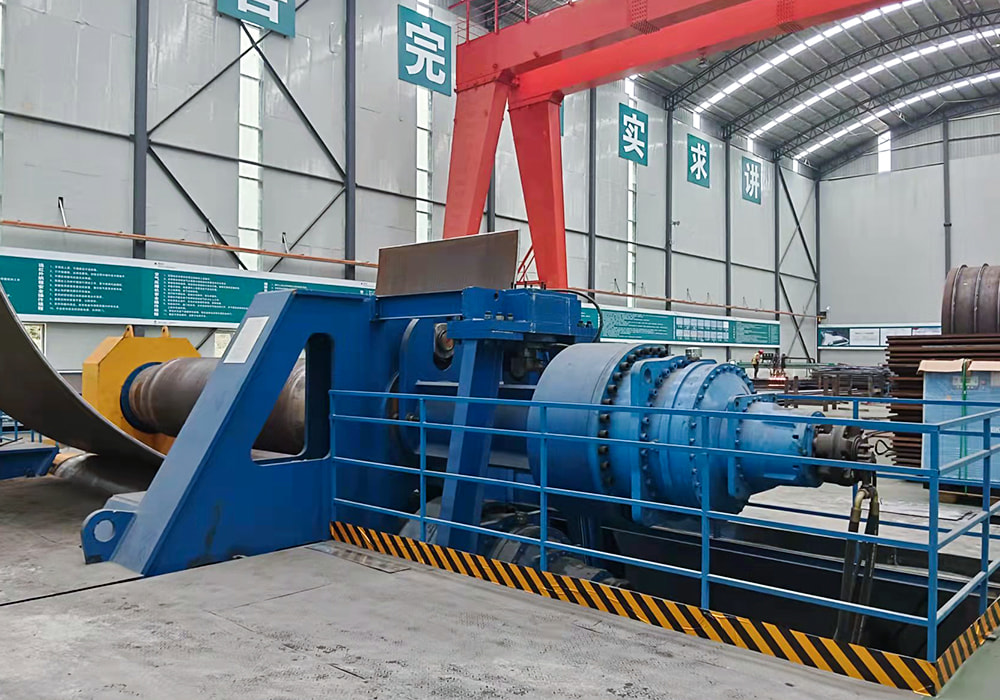

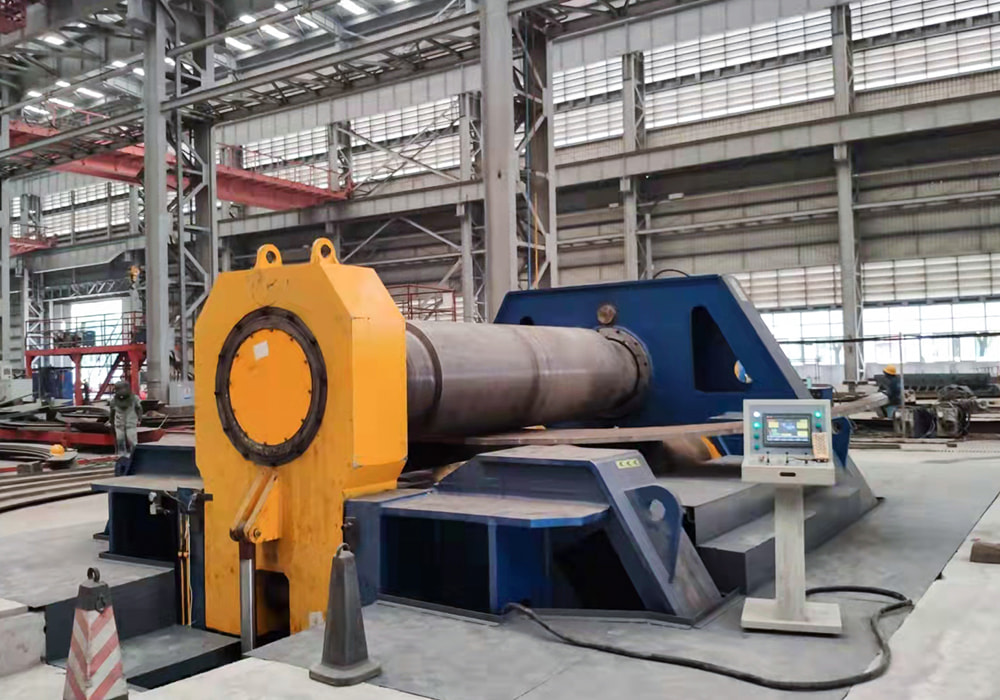

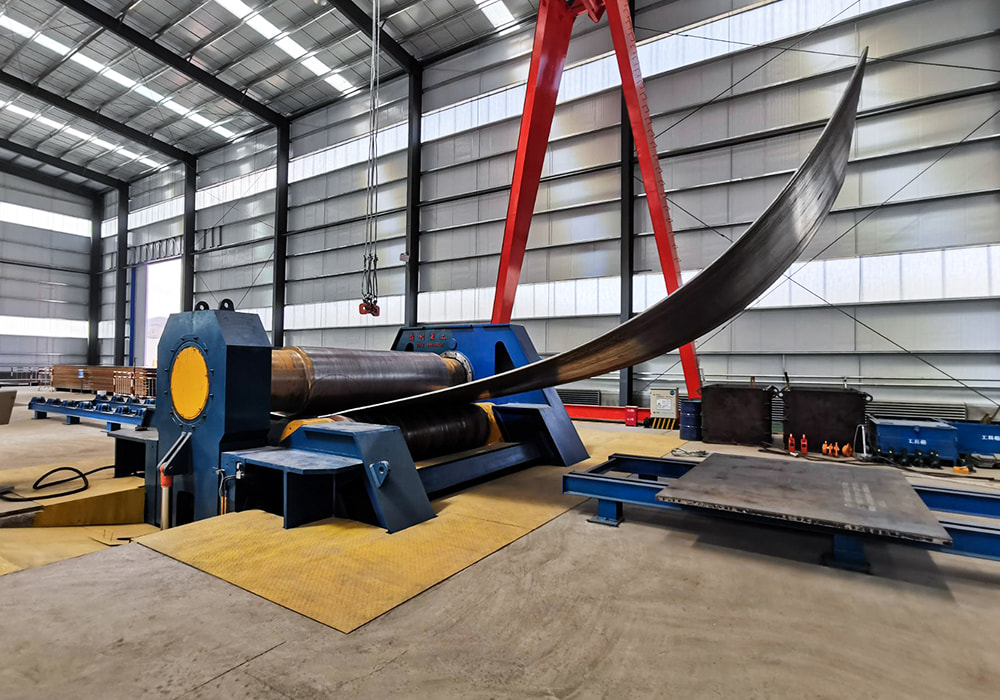

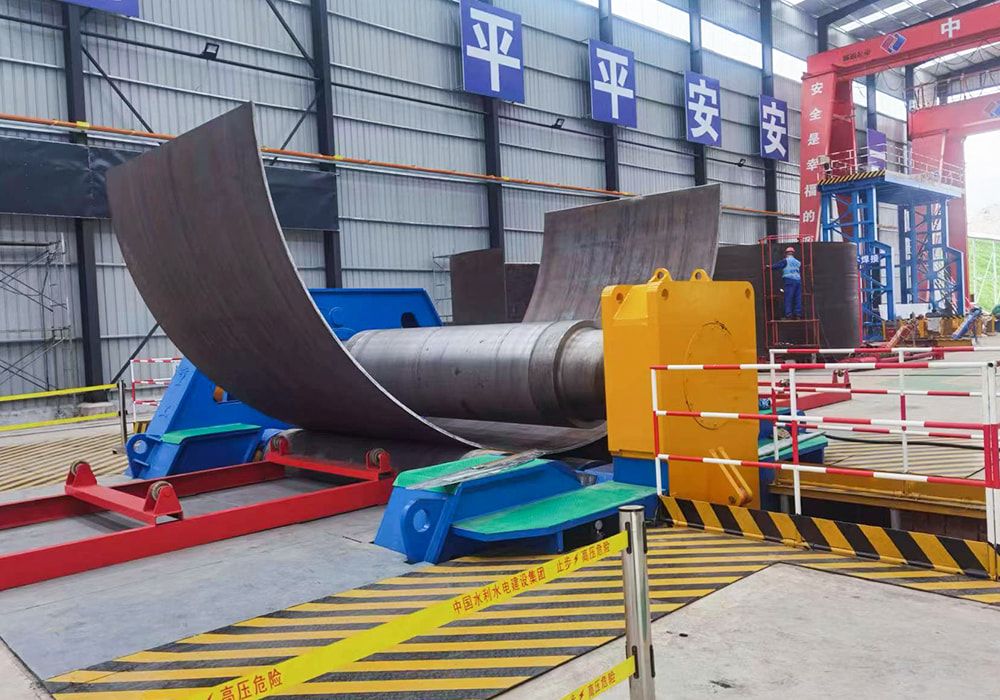

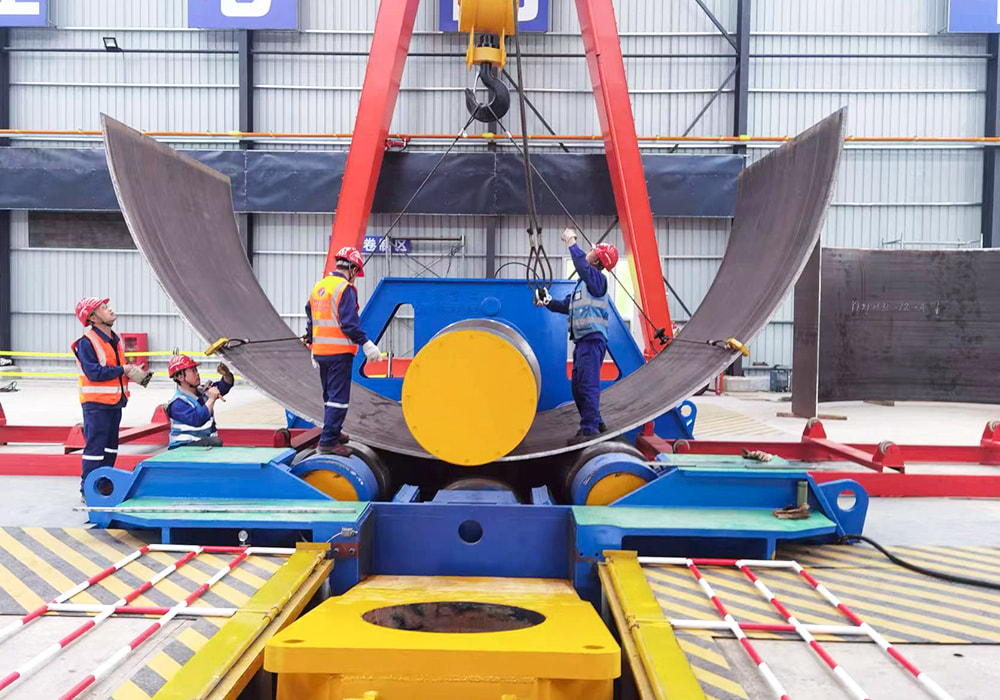

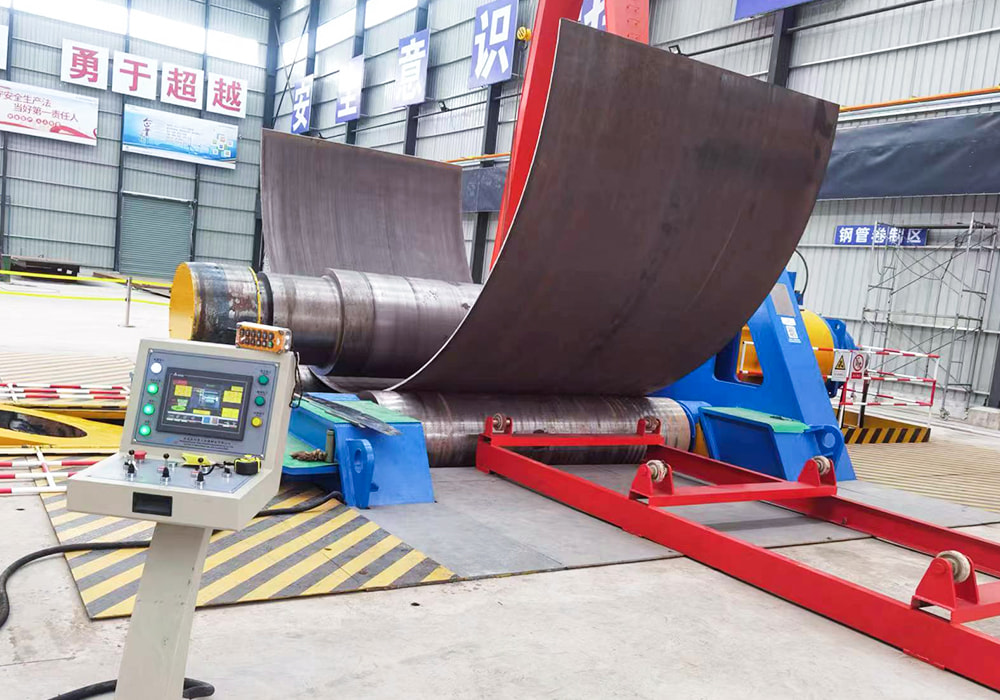

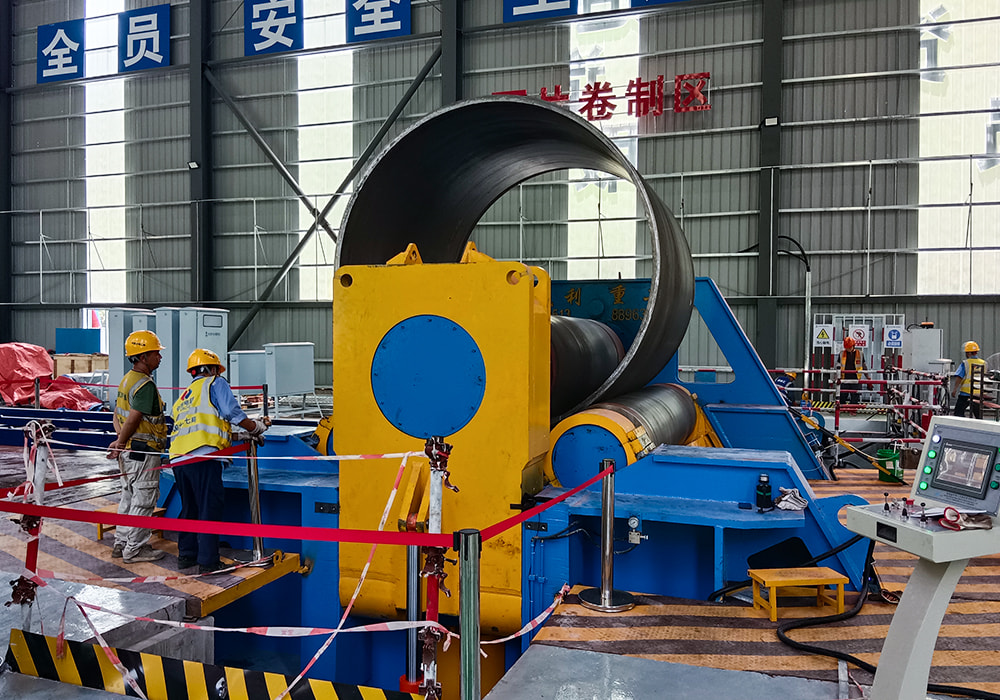

The Hydraulic 4-Roll Bending Machine For Wind Tower is a numerically controlled industrial metal cold forming equipment equipped with a four-roll structural configuration. This Hydraulic 4-Roll Bending Machine For Wind Tower adopts an 820mm top roll, 780mm bottom rolls, and 600mm side rolls, supporting a maximum rolling thickness of 90mm and a maximum working width of 3000mm. The machine is fitted with an advanced CNC intelligent control system and a full servo motor hydraulic drive system. The four-roll layout of this Hydraulic 4-Roll Bending Machine For Wind Tower enables one-time clamping, pre-bending, and continuous rolling without plate turnover. The numerical control program stores rolling parameters for repeated calling, supporting batch forming of cylindrical, conical, and arc workpieces—including wind tower conical sections. The servo hydraulic linkage structure matches thick plate processing demands and adapts to standardized and automated metal forming production for wind tower manufacturing.

Inquiry Now

Product Introduction

Core Advantages of Hydraulic 4-Roll Bending Machine For Wind Tower

- Four-roll structural design: The Hydraulic 4-Roll Bending Machine For Wind Tower completes pre-bending and rolling without plate flipping, reducing repeated clamping and positioning steps for wind tower conical sections.
- CNC intelligent control system: This Hydraulic 4-Roll Bending Machine For Wind Tower supports parameter storage and one-key recall, realizing unified parameter standards for batch production of tower sections.
- Full servo motor hydraulic drive: Provides precise pressure and displacement output, matching thick plate forming operation requirements for wind power applications.
- Matching multi-diameter roller combination: Improves contact area between rolls and plates, reducing local deformation during thick plate rolling of wind tower components.

Product Features of Hydraulic 4-Roll Bending Machine For Wind Tower

The Hydraulic 4-Roll Bending Machine For Wind Tower features a standard roller configuration including Ø820mm top roll, Ø780mm bottom rolls, and Ø600mm side rolls, adapting to 90mm thick plate and 3000mm wide plate processing. The CNC intelligent control system on this Hydraulic 4-Roll Bending Machine For Wind Tower realizes digital setting, monitoring, and adjustment of rolling stroke, pressure, and forming radian. The full servo hydraulic drive system achieves synchronous operation of each roller with adjustable operating speed and pressure. The integrated four-roll linkage mode of this Hydraulic 4-Roll Bending Machine For Wind Tower supports continuous forming of various curved and circular metal workpieces, including wind tower conical shells and cylindrical tower sections.

Application Scenarios of Hydraulic 4-Roll Bending Machine For Wind Tower

The Hydraulic 4-Roll Bending Machine For Wind Tower applies to heavy industrial metal forming fields, with special emphasis on wind power equipment manufacturing. It is used for thick-wall conical tower sections, wind turbine tower shells, and large storage tank components in petrochemical and thermal power industries. This Hydraulic 4-Roll Bending Machine For Wind Tower supports curved structural part manufacturing for wind tower foundations, steel structure engineering, and metallurgical equipment. It also adapts to automated batch production of thick plate arc workpieces for new energy heavy equipment, wind power supporting facilities, and industrial infrastructure.

Operation Notes for Hydraulic 4-Roll Bending Machine For Wind Tower

- All processing on the Hydraulic 4-Roll Bending Machine For Wind Tower shall be limited within the 90mm maximum rolling thickness and 3000mm maximum plate width to avoid roller overload.
- Set and verify CNC program parameters before operation to prevent dimensional errors caused by incorrect data input.
- Check servo motor and hydraulic system status, and perform a no-load test run before formal production.
- Clean roller surface residues regularly and conduct periodic inspection of CNC system circuits and hydraulic pipelines.

FAQ & Solutions for Hydraulic 4-Roll Bending Machine For Wind Tower

Inconsistent forming size in batch production
Solution: Lock the stored CNC forming parameters on the Hydraulic 4-Roll Bending Machine For Wind Tower and calibrate roller parallelism before batch processing.

Slow roller response during operation
Solution: Check servo motor signal connection and hydraulic system pressure on this Hydraulic 4-Roll Bending Machine For Wind Tower to eliminate system delay.

Plate edge uneven forming
Solution: Adjust the synchronization parameters of side rolls and bottom rolls to maintain balanced stress on the plate surface.
