Dishes End Flanging Machine

Overview of Dishes End Flanging Machine

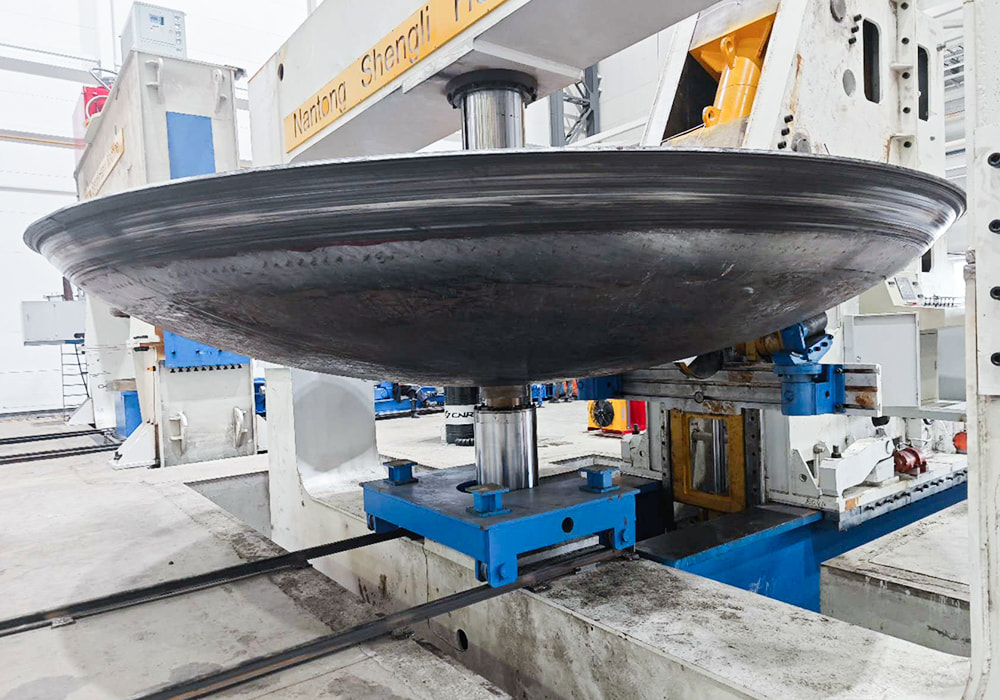

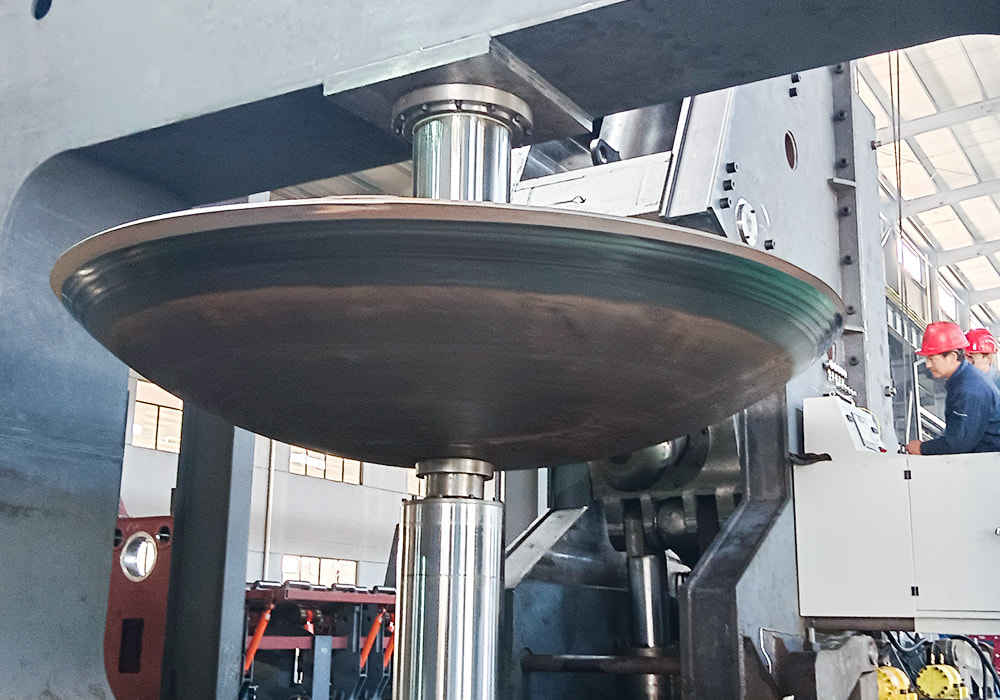

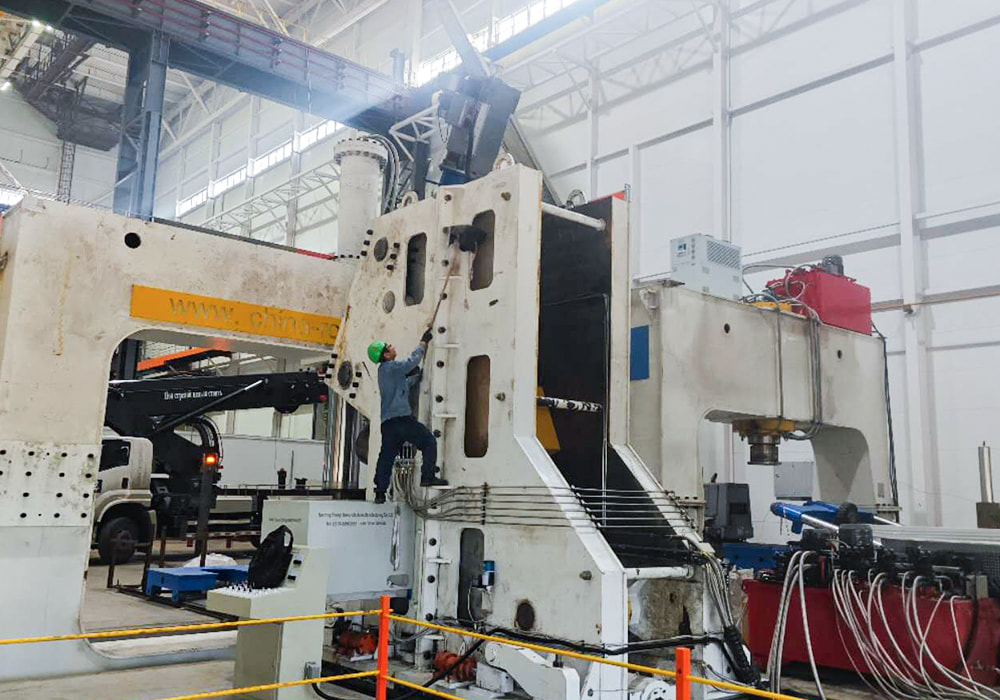

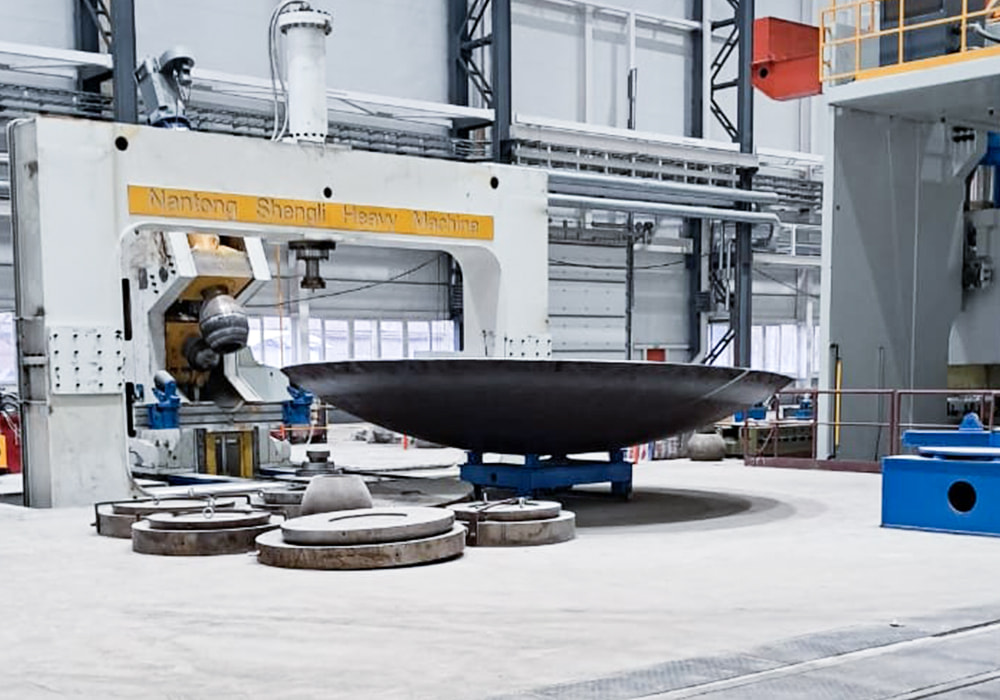

The Dishes End Flanging Machine is CNC-controlled hydraulic spinning equipment dedicated to pressure vessel dished head cold forming. This Dishes End Flanging Machine supports a maximum processing thickness of 60mm and a maximum workpiece diameter of 6000mm, compatible with carbon steel, stainless steel, and other vessel-specific metal sheets. The machine adopts an integrally welded frame processed by overall stress relief tempering treatment, equipped with a CNC control system and a perimeter automatic detection module. Forming dies on this Dishes End Flanging Machine are driven by radial adjustable-speed motors, and hydraulic clamping cylinders control the vertical positioning height of raw blanks. With a precise hydraulic pressure output structure, the equipment completes continuous rotary spinning and edge flanging in one clamping cycle. Key hydraulic and electrical components of this Dishes End Flanging Machine adopt standard brand parts, and the whole machine passes ISO and CE certification to match standardized mass production of tank and pressure vessel end caps.

Inquiry Now

Product Introduction

Core Advantages of Dishes End Flanging Machine

- Built-in automatic perimeter detection module: The Dishes End Flanging Machine realizes real-time dimension tracking to record finished workpiece diameter data during spinning.
- Numerically controlled operation system: This Dishes End Flanging Machine sets processing parameters digitally to lower the technical threshold for field operators.
- Integral welded and stress-relieved frame: Reduces structural deformation under long-time cyclic high-load spinning operation.
- Modular configuration of brand hydraulic and electric parts: Shortens component replacement and daily maintenance cycles.

Product Features of Dishes End Flanging Machine

The Dishes End Flanging Machine features a rated machining range covering 60mm max plate thickness and 6000mm max finished head diameter for large-size dished end forming. A radial variable-speed motor independently drives the forming mold on this Dishes End Flanging Machine to adjust rotating speed matching different metal material ductility. The hydraulic clamping cylinder structure adjusts workpiece installation height to fix blank position during rotary flanging. A steady quantitative hydraulic supply system on this Dishes End Flanging Machine realizes continuous and controllable pressing force in the full spinning travel.

Application Scenarios of Dishes End Flanging Machine

This Dishes End Flanging Machine is applied in petrochemical storage tank, boiler, and environmental protection pressure vessel manufacturing industries. This Dishes End Flanging Machine processes dished heads and elliptical end caps for various industrial storage containers, heat exchange equipment, and pressure-bearing shells.

Operation Notes for Dishes End Flanging Machine

- Confirm raw blank diameter and thickness are within the rated 6000mm and 60mm specifications of the Dishes End Flanging Machine before clamping installation.
- Calibrate the perimeter detection sensor zero point before formal spinning processing.
- Complete a no-load test run to inspect hydraulic pressure output and mold rotating synchronism.
- Clear mold surface oxide residue after each daily shift and inspect the sealing status of hydraulic cylinder assemblies regularly.

FAQ & Solutions for Dishes End Flanging Machine

Workpiece diameter out of tolerance after forming
Solution: Recalibrate perimeter detection parameters on the Dishes End Flanging Machine and revise the CNC feeding stroke setting.

Uneven wall thickness of finished dished end
Solution: Adjust radial motor rotating speed on this Dishes End Flanging Machine and optimize the hydraulic pressure output curve.

Unstable clamping of metal blank
Solution: Check hydraulic cylinder oil leakage and supplement hydraulic oil to the standard liquid level.
